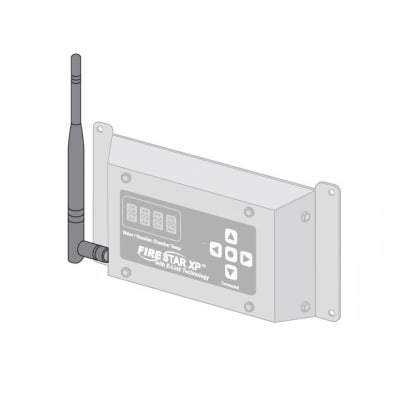

Replacement antenna only for FireStar XP Outdoor Wi-Fi Module, RP-SMA Male, 6.6”
|

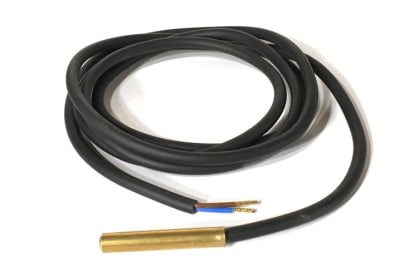

Replacement water temperature sensor kit for Classic furnaces with a Digital Temperature Controller (p/n 2000155), Classic Edge HD (serial # starts with GF) and Classic Edge HDX models (serial # starts with GX).
Kit includes sensor and wire lead, mastic tape and instructions.
|

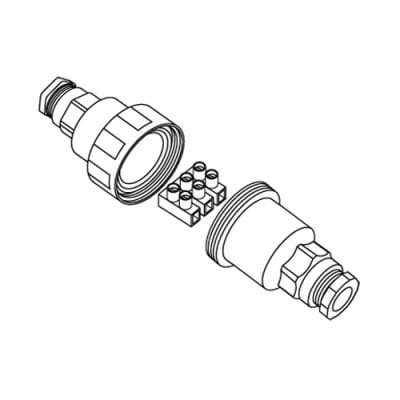

Used to splice together lengths of shielded cable. Includes 3-position terminal connector. Rated for underground burial. Cable sold separately (p/n 8200012 and 10489-SP).
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

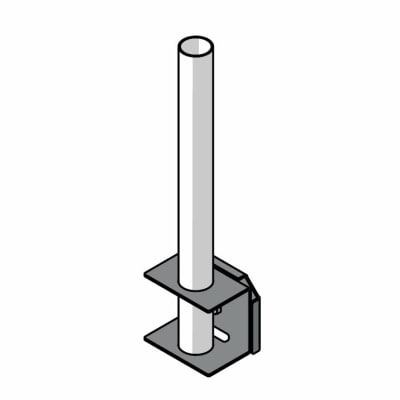

Used to mount a Wi-Fi antenna (not included) to the lift tab of the furnace.
|

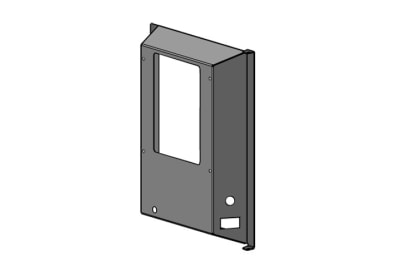

Optional outer control cover is pre-drilled for Outdoor Wi-Fi Module Kit (p/n 2500070).
|
Some earlier E-Classic models will require Wiring Kit to be able to monitor the bypass door and gas-fired wood ignition when installing the FireStar II Controller remote monitoring system for the E-Classic furnaces. Contact your dealer to be determine whether the FireStar II Wiring Kit is required.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Upgrades FireStar II controller from software version 6.2 to version 6.42. Software version 6.4x or higher is required to enable FireStar II to connect to the FireStar XP. Includes memory card, tweezers for installation/removal, FireStar II Owner's Manual and instructions.
|

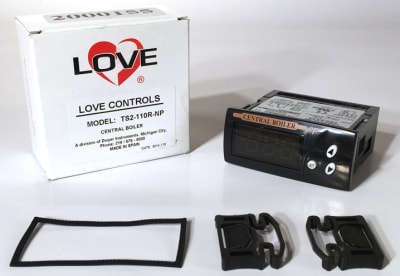

Replacement Digital Temperature Controller for Classic (including Pallet Burner) model outdoor furnaces only (after s/n 25151).
|

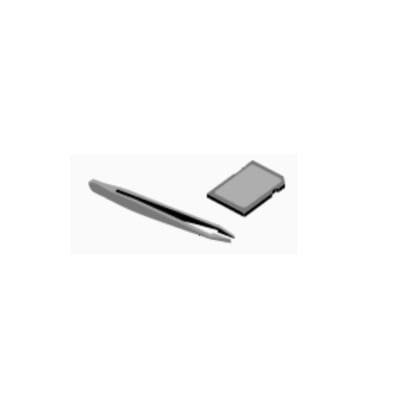

Optional method of data logging for outdoor furnaces without FireStar XP. Requires software version 6.x. Information can be uploaded to MyFireStar.com website but card must be returned to Central Boiler for that to occur. Includes memory card, tweezers for installation/removal and instructions.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

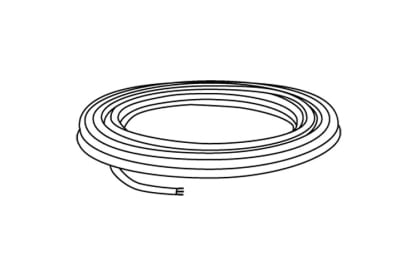

3-Conductor Shielded Cable, 100-ft roll, used to connect FireStar II controller on outdoor furnace on FireStar XP Wi-Fi module. Cable is waterproof, UV-resistant and rated for underground burial.
|
Replacement FireStar controller for Forge 1500 and 3500 models. Power supply (part number 8200275) is sold separately.
|
Replacement FireStar controller for Classic Edge 350, 550 and 750 models with stepper motors. Power supply (part number 8200275) is sold separately.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Replacement FireStar controller (v6.8x) for Classic Edge HDX 360, 560 and 760 models. Power supply (part number 8200275) is sold separately.
|

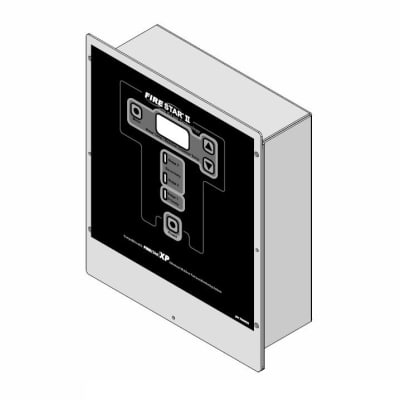

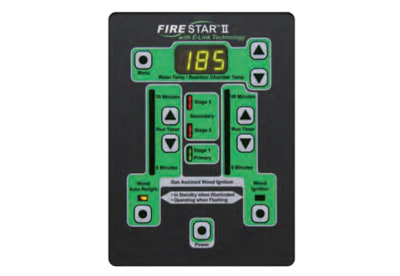

FireStar II is a controller system that allows you to monitor your furnace on your computer or smartphone (to be used in conjunction with desktop [part number 2500171], wall-mount [part number 2500170] or outdoor [part number 2500070] FireStar XPs sold separately).
FireStar II Controller with version 6.42 software can be installed on all E-Classic 1450, 2400 and 3200 models produced prior to June 2012, and on all E-Classic 1400 models. Some earlier models will require Wiring Kit (part number 2500023) to be able to monitor the bypass door and gas-fired wood ignition.
EXCEPTION: This controller does not operate the dual fuel burner and is not recommended as a replacement controller for E-Classic 2300 models. NOTE: This controller can be identified by its GREEN on black face plate.
|

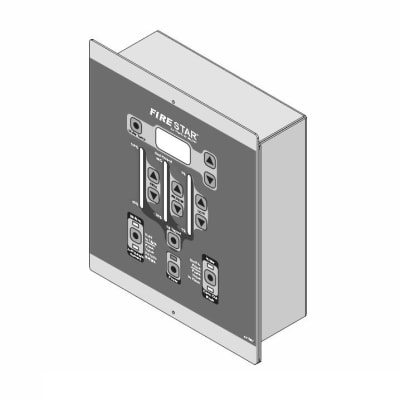

Replacement FireStar controller for Maxim 250 & 255 P models.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

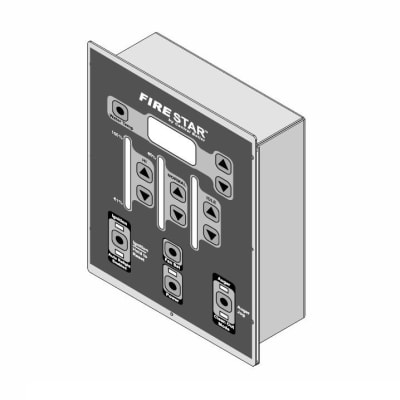

Replacement FireStar controller for Maxim 175 models.
|

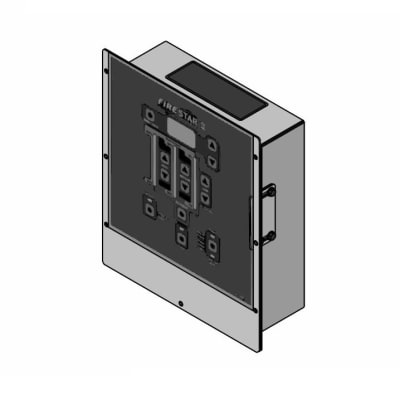

Replacement FireStar controller for Maxim 255 PE models.
|

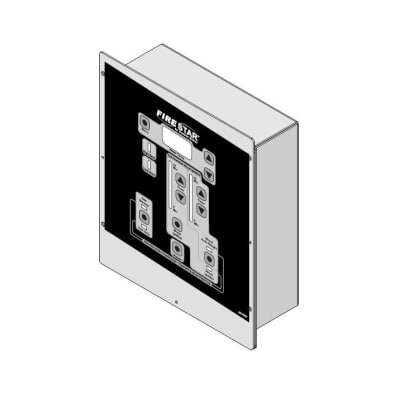

Replacement controller for E-Classic 2300 Dual Fuel models, no thermocouple. Version 5.32.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

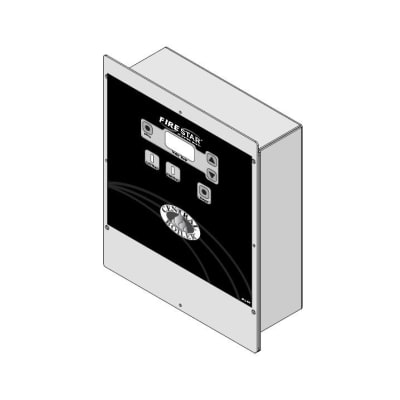

Replacement controller for E-Classic 2300 non-Dual Fuel models, converted from Love controller. Version 5.52.
|

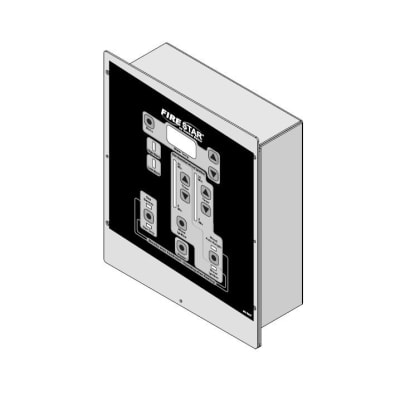

Replacement controller for E-Classic 2300 Dual Fuel models, with thermocouple. Version 5.72.
|
Replacement controller for E-Classic 1400 models. Version 5.52.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Replacement FireStar controller for Classic Edge 350, 550 and 750 models without stepper motors.
|

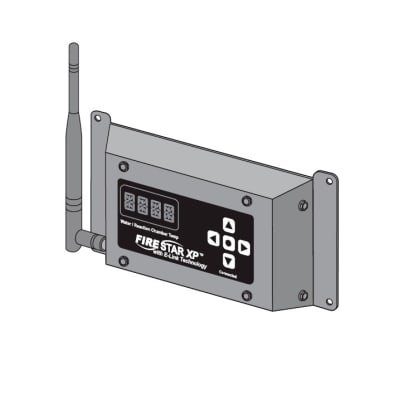

Outdoor wi-fi display and control panel can be used to remotely view operational data and menu settings on the FireStar II controller. Compatible only with a properly configured FireStar II equipped outdoor furnace (with software version 2.5x or higher on Maxim M255 PE models)
Kit includes FireStar XP Outdoor Wi-Fi Module, antenna, wiring, Quickstart Guide, Operator’s Manual and installation instructions.
NOTE: Wireless range varies widely with each installation. Prior to purchase, a site survey (using a smartphone or laptop) should be performed to determine if the furnace site is within range of customer’s existing Wi-Fi network. Range is generally up to 100 feet when unobstructed and there is no interference. Uses 802.11 technology.
|
Outdoor wi-fi display and control panel can be used to remotely view operational data and menu settings on the FireStar II controller. Compatible only with a properly configured FireStar II equipped outdoor furnace (with software version 6.4x or higher on E-Classic or Classic Edge models).
Kit includes FireStar XP Outdoor Wi-Fi Module, antenna, wiring, Quickstart Guide, Operator’s Manual and installation instructions.
NOTE: Wireless range varies widely with each installation. Prior to purchase, a site survey (using a smartphone or laptop) should be performed to determine if the furnace site is within range of customer’s existing Wi-Fi network. Range is generally up to 100 feet when unobstructed and there is no interference. Uses 802.11 technology.
|
|
|
|
|
|
|
|
|
|
|
|
|
3-Conductor Shielded Cable, 1000-ft roll, used to connect FireStar II controller on outdoor furnace on FireStar XP Wi-Fi module. Cable is waterproof, UV-resistant and rated for underground burial.
|
|
|
