ThermoPEX is flexible, pre-insulated piping consisting of two waterproof oxygen barrier PEX-A lines (supply and return) protected by polyurethane closed cell foam insulation and a thick, durable, waterproof polyethylene outer jacket. The Central Boiler-specific corrugated outer shell allows for tighter turns. It is the ideal insulated piping for use with outdoor wood furnaces. The outside diameter of 1" ThermoPEX is 4-3/8"
ThermoPEX with 1" PEX line is sold by the foot in five foot increments. Volume discount of $.50/foot for lengths over 100'. Note: 1" is the outside diameter of the encased PEX lines. Inside diameter is 3/4".
|

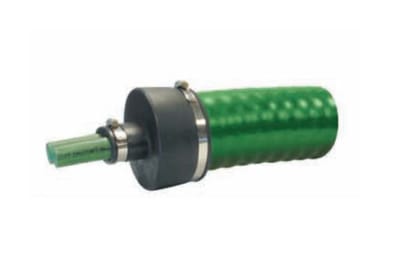

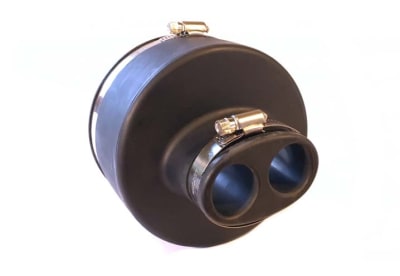

Fits snugly over each end to protect and seal the insulation from water. Includes band clamps.
|
Deburs pipe and used to mark pipe to indicate when the pipe is inserted completely into the fitting. One tool for 1/2", 3/4" and 1" pipe.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fits snugly over each end to protect and seal the insulation from water. Includes band clamps.
|
Fits snugly over each end to protect and seal the insulation from water. Includes band clamps.
|

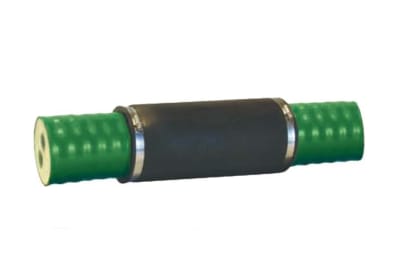

Twelve-inch rubber splice is used to join two ends of ThermoPEX together. Includes band clamps. Fittings and crimp rings for joining the PEX lines are sold separtely.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Central PEX 1" pipe, non-oxygen barrier PEX-B in 8-ft straight sections, includes 10 sections per bag. (25 per bag also available, part number 5700083).
|
Twelve-inch rubber splice is used to join two ends of ThermoPEX together. Includes band clamps. Fittings and crimp rings for joining the PEX lines are sold separately.
For splicing 1-1/4" PEX, see part number 381.
|
Twelve-inch rubber splice is used to join two ends of ThermoPEX together. Includes band clamps. Fittings and crimp rings for joining the PEX lines are sold separately.
For splicing 1" PEX, see part number 1333.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Central PEX 1" Pipe is a high-density, non-oxygen barrier PEX-B, cross-link pipe, rated for temperatures to 180°F at 100 psi. Note that the color has changed from green to red.
|
High-density, oxygen barrier PEX-B, cross-link pipe. Rated for temperatures to 180°F at 100 psi. Excellent for radiant floor heating applications.
|
Central PEX 1" Pipe is a high-density, non-oxygen barrier PEX-B, cross-link pipe, rated for temperatures to 180°F at 100 psi. Note that the color has changed from green to red.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Central PEX 1" pipe, non-oxygen barrier PEX-B, in 8-ft straight sections, includes 25 sections per bag. (10 per bag also available, part number 5700082).
|
High-density, oxygen barrier PEX-B, cross-link pipe. Rated for temperatures to 180°F at 100 psi. Excellent for radiant floor heating applications.
|
| Central PEX 1" Pipe is a high-density, non-oxygen barrier PEX-B, cross-link pipe, rated for temperatures to 180°F at 100 psi. Note that the color has changed from green to red. |
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
High-density, oxygen barrier PEX-B, cross-link pipe. Rated for temperatures to 180°F at 100 psi. Excellent for radiant floor heating applications.
|
Central PEX 1" Pipe is a high-density, non-oxygen barrier PEX-B, cross-link pipe, rated for temperatures to 180°F at 100 psi. Note that the color has changed from green to red.
|

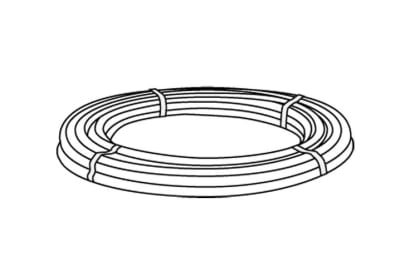

Useful when uncoiling and installing 1/2" tubing.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
High-density, oxygen barrier PEX-A, cross-link pipe, rated for 180°F. PEX 1-1/4" Pipe, 150 feet
|
High-density, oxygen barrier PEX-A, cross-link pipe, rated for 180°F and 100 psi. PEX 1-1/4" Pipe, 328 feet. Each length should be insulated separately as two will not fit inside Central Therm insulation.
|
|
|
