Central Boiler Classic X 6048 Titanium Series

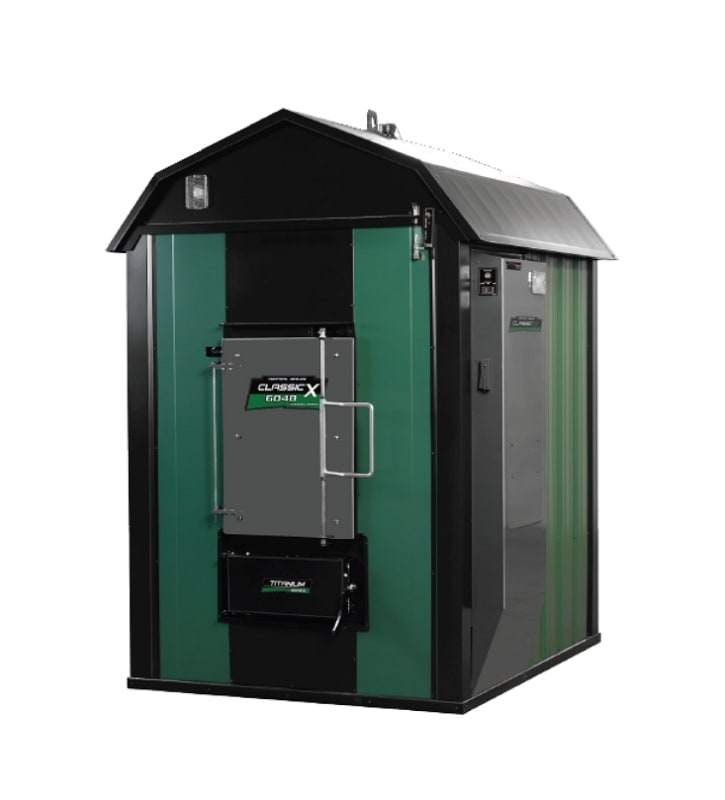

Central Boiler Classic X 6048 Titanium Series

Our price: $15,945.00
Call to order.


Availability: Call for availability. Free delivery w/in 100 miles of Careywood (Idaho only). Call 208-946-5550.
Product Code: 1050443
“Our Price” includes our incoming dealer freight and is net of current rebate. Payment options are available for this furnace, see “Central Financing” for more information.

Description Technical Specs/Docs Returns/Cancelled Orders and Warranty

The Classic series of outdoor wood furnaces is easy to load and operate while maintaining durability, quality, and performance.

Constructed of titanium-enhanced stainless steel, the firebox has superior corrosion resistance and excellent heat transfer performance. This allows loading the firebox for longer burn times (in some cases up to 48 hours or more*) and burning some wood that is less than perfectly seasoned.

Central Boiler recommends burning seasoned wood when possible because dry wood burns better and provides more energy for heating your home. You'll burn less wood, saving you more money and time. That is, after all, what you want your outdoor furnace to do. *Actual burn times vary based on wood types, moisture content, heat load and ambient temperature.

Non-residential applications only

Benefits and Options
  • More heat from the wood - the RippleTop design maximizes the surface area of the firebox and the HeatLock Baffle traps the heat in the heat collection area.
  • Easy to load - the large, insulated steel door is ergonomically designed for easy opening and closing and insulated to lock in the heat.
  • Easy to operate - the automatic draft control opens and closes as needed to control the water temperature in the system.
  • Durable and long-lasting - steel siding and powder-coating paint provide unequaled fit and finish and withstand the elements of time.
  • Dual Fuel Ready option - Easily add an optional fuel oil, natural gas or propane burner (sold separately).
Features

  1. Vent Cap - Design eliminates evaporation.
  2. High Capacity Water Jacket - Tested multiple times to ensure welding integrity.
  3. Patented Ripple Top™ Design - Increases heat transfer area in the firebox and absorbs radiant heat.
  4. Large, Insulated Steel Door - Ergonomically designed with a large door for easy loading. Door is insulated for maximum efficiency. Door parts are powder-coated for increased paint durability. Central Boiler's Cam Loc® door closure ensures a tight seal each time the door is closed.
  5. Rear Exhaust Outlet - Increases efficiency and eliminates leaks and corrosion that competitors experience from chimneys that exit through the roof. Designed for easy inspection. Reduces heat loss by over 50%.
  6. Removable Swinging Baffles - Increases combustion efficiency and easily removed with no tools.
  7. Shaker Grates - Makes ash removal easy.
  8. Urethane Foam Insulation - Insulation is sprayed on and forms a 100% airtight seal around the water jacket.
  9. Patented HeatLock Baffle® - Secondary Heat Exchanger - With up to 36% more heating surface area than other brands, it traps more heat and gases for most complete combustion and heat extraction.
  10. Combustion Accelerator™ - The over-air tube provides air at the top of the Combustion Dome, accelerating combustion and improving combustion efficiency.
  11. Combustion Dome™ - Area at the front of the firebox where gases are trapped for more complete combustion.
  12. Cyclone Side Draft - Provides primary fan-forced adjustable air delivery controlled by actuators rather than solenoids.
  13. Ash Clean Out Door - Easily remove ash during operation.
  14. Titanium-Enhanced Stainless Steel, Rectangular Firebox - Superior corrosion resistance and excellent heat transfer performance. Engineered with stay pins. Will not collapse like round designs can.
  15. Skid Base Framework - Makes installation easy with or without cement foundation.
  16. Welded Steel Framework - Heavy-gauge framework engineered for enhanced strength of side panels and roof.
  17. Insulated Chimney - The chimney is a Type HT listed, factory-built chimney.

*Fan Draft option available for all models.
