Creatherm R-5 - 56 PSI (T45)
Creatherm





Our price: $13.48


Availability: Usually Ships in 2 to 4 Weeks
Product Code: CTH-24-50-56-05
Request a shipping quote:

Description Technical Specs/Docs

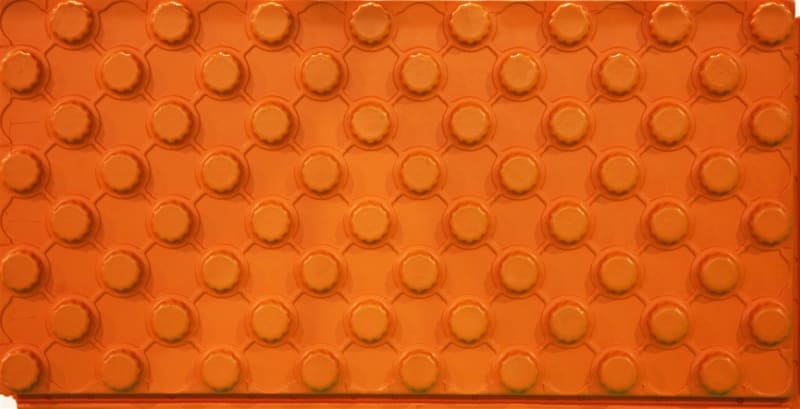

2x4 ft. interlocking panel used for insulating and installing radiant floor heating in applications requiring a thin insulation coverage such as above subfloor where a lightweight concrete may be poured. R value = 5, PSI = 56.

Pricing is for one panel but packaged and sold in 18 panel bundles = 144 sq. ft. per bundle. Panels are 1" thick, with an overall thickness of 1.8" including PEX holding knobs. Usually ships in 2-4 weeks, please contact us for a shipping quote.

This product ships to eastern, mid-west and southwest regions of the United States.
Features
  • Securely holds 1/2" or 5/8" or 3/4" PEX tubing
  • Eliminates costly staples and expensive staplers
  • Evenly spaced PEX Holding knobs on 3 inch centers provides for 6," 9", 12" or greater spacing
  • Installed PEX tubing lies below the walking surface which reduces trips and falls, pull out and rework, floating and crushed PEX
  • "Walk-in" Installation reduces install time by as much as two-thirds
  • Environmentally friendly
  • EPS is the only rigid board that does not lose R-value over time
