NextGen 8kW Electric Boiler

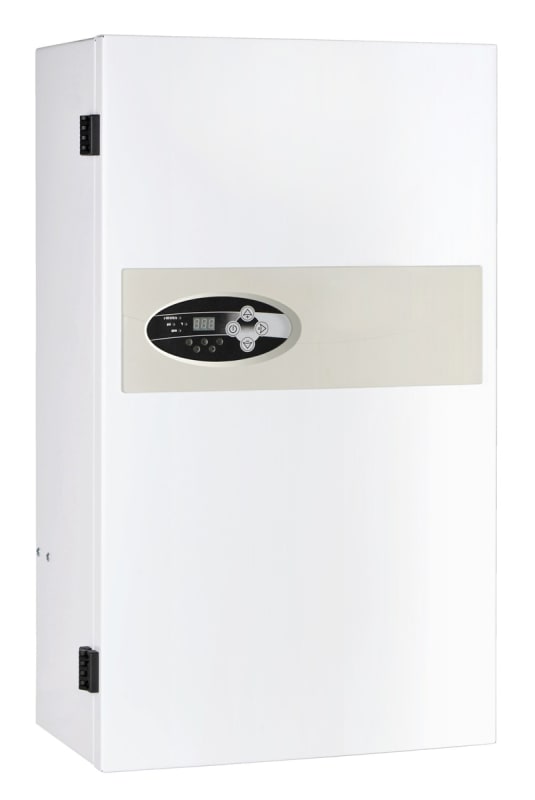

NextGen 8kW Electric Boiler

Alternative Views:
Free shipping
Our price: $2,713.67


Free Shipping
Product Code: NEXTGEN-8
Qty:

Features Technical Specs/Docs Returns/Cancelled Orders and Warranty

Features
The NextGen Boiler is a three element modulating electric boiler that allows for consistent, professional installation for radiant heating applications. Take the complexity out of the mechanical room and replace it with peace of mind for the homeowner. All boiler parts and pieces (expansion tank, circulating pump, air vent, safety relief valve, and heat exchanger) are housed within the unit, for an aesthetically pleasing appearance.

  • Boiler Rated Power: 8kW (27,304 BTU/Hour)
  • Voltage: 240V
  • Rated Current: 33.3A
  • Breaker Quantity - Amps: 1@50 amp
  • Number of Heating Elements: 3
  • Element Resistance: 21.6 alms ea
  • Operating Temperature Range: 85F -140F
  • Weight: 68.5lbs
  • Dimensions: 28"x17"x9-7/8"
  • One attractive plug-and-play system
  • Low-water cutoff controls and flow sensing controls
  • Installs in less than half the time
  • 2 Year Limited Warranty
  • UL Listed
  • Modulated three staged heating
  • Outdoor compensation/reset
  • Off-peak capability
  • Redundant safety controls
