Rad Board Ultimate Track
Rad Board Ultimate Track

Alternative Views:

Price per 4 sq. ft. panel
Our price: $22.50

Availability: Pre-Order
Product Code: RBU34-12
Please contact us for a consulation and/or shipping quote.

Description Technical Specs/Docs

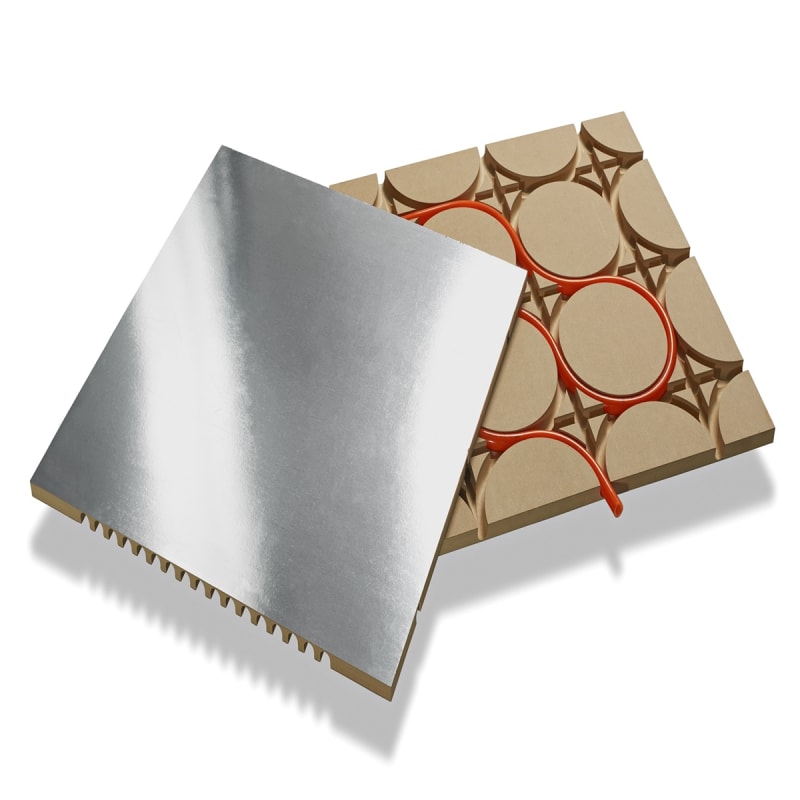

2' x 2' Ultimate Track Rad Board panel. The Ultimate Track panel is a 3/4" thick aluminum-backed panel with curved and straight tracks allowing you to maintain 8" on center curved and straight patterns designed for 1/2" PEX or PE-RT radiant tubing. The Ultimate board allows for maximum flexibility in routing your tubing and is used along walls or where turns will be needed. Tracks securely hold tubing in place and provide a flush finish allowing for easy installation of your floor covering.

Common floor coverings include tile, laminate, engineered wood, hardwood, vinyl and carpet. Consult the floor covering instructions for the correct installation over radiant flooring products.

Use the Ultimate Track Rad Board panel in combination with our Straight and Distribution Track panels to complete your above sub-floor installation. Our complimentary design service is included with a minimum purchase and will allow us to calculate the layout of the panels needed for your floor plan.

Note: PEX tubing shown in pictures is not included but is for illustration purposes only.
  • Easy to install for contactors and do-it-yourself homeowners
  • Responds quicker than concrete or below subfloor staple-up solutions (feel the heat faster)
  • Aluminum backing aids in quicker heating and heat transfer
  • Uses 1/2" Pex/PE-RT tubing instead of 3/8" tubing reducing the quantity of loops needed
  • Competitively priced when compared to similar radiant floor solutions
  • Provides virtually any pattern layout with three simple panel designs
  • Much easier to isolate rooms and zones than staple-up solutions
