4-branch Brass Radiant Heat Manifold Set
4-branch Brass Radiant Heat Manifold Set



Alternative Views:


Our price: $244.95

Product Code: NBM04
Qty:

Description Technical Specs/Docs

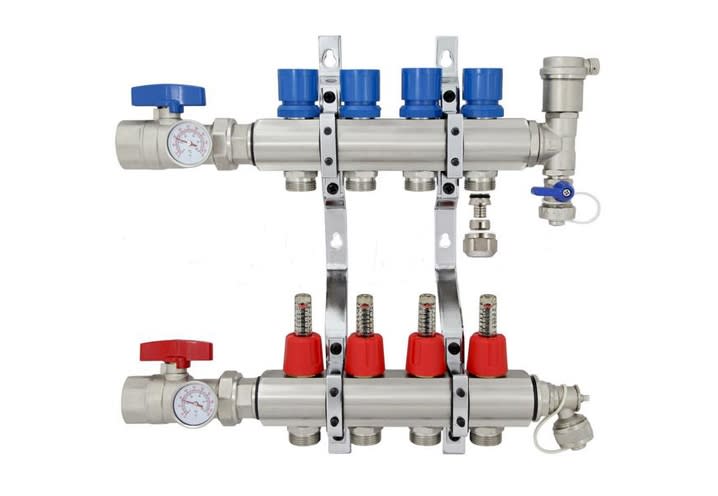

4-branch Deluxe Radiant Manifold Set. Made from brass with nickel plated finish. Pre-assembled and includes all components shown on the picture. 1/2 " PEX Adapters come standard, 5/8" PEX Adapters available upon request.

Features

(1) Supply side radiant manifold w/ (4) adjustable flow indicators and (4) outlets for PEX tubing.

(1) Return side radiant manifold w/ (4) balancing valves and (4) outlets for PEX tubing.

(2) 1" threaded, quarter turn shut-off ball valves - one for each manifold (blue handle for return manifold and red handle for supply).

(2) Temperature gauges on both manifolds to monitor supply and return water temperatures (F & C reading).

(2) Float-type air vents to eliminate air from the system - both on supply and return side (air vent caps included for pressure testing purposes).

(2) Drain/fill valves with 3/4" garden hose (drain hose) connection and a cap.

(6) Compression adapters for 1/2" PEX tubing (no PEX tools required to connect tubing to the manifold).

(2) Mounting brackets.
