of PEX outlets: 18;
(On Center) between PEX outlets: 2";
when installed: 14.5"
when installed: 24.75"
between supply and return manifolds (on center): 8.25"
with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn,
Everhot, Nibco, etc.)

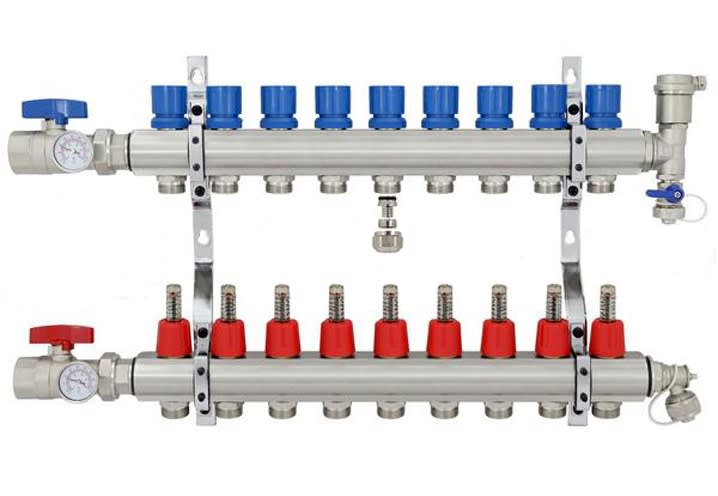

(1) Supply side radiant manifold w/ (9) adjustable flow indicators and (9) outlets for PEX tubing.
(1) Return side radiant manifold w/ (9) balancing valves and (9) outlets for PEX tubing.
(2) 1" threaded, quarter turn shut-off ball valves - one for each manifold (blue handle for return manifold and red handle for supply).
(2) Temperature gauges on both manifolds to monitor supply and return water temperatures (F & C reading).
(2) Float-type air vents to eliminate air from the system - both on supply and return side (air vent caps included for pressure testing purposes).
(2) Drain/fill valves with 3/4" garden hose (drain hose) connection and a cap.
(6) Compression adapters for 1/2" PEX tubing (no PEX tools required to connect tubing to the manifold)..
(2) Mounting brackets.
